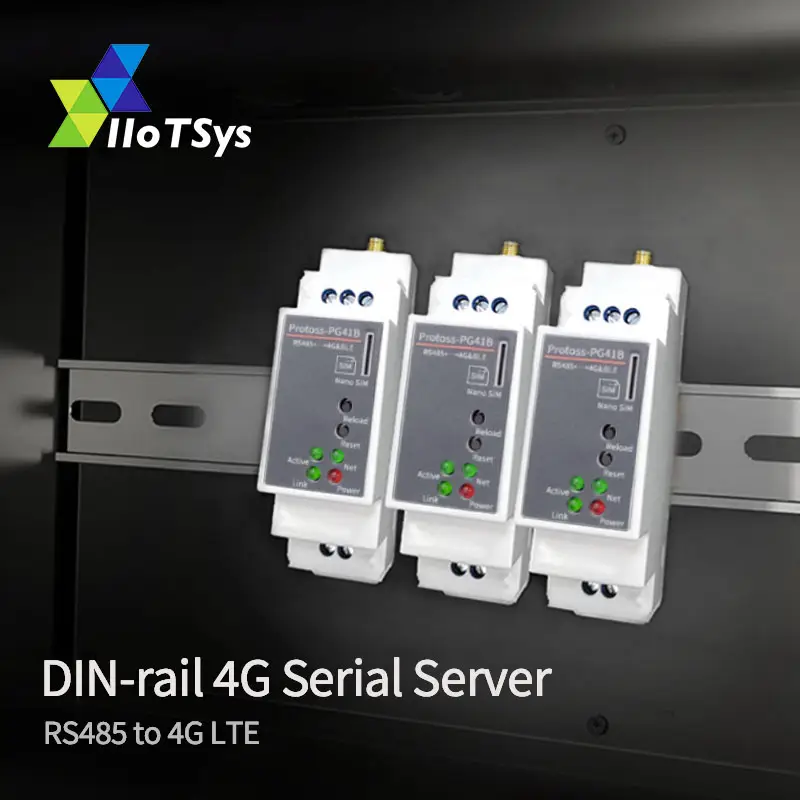

DIN-rail RS485 4G LTE Serial Server

Support Bluetooth configuration parameters and data transparent transmission
Support 4G full Netcom LTE-TDD, LTE-FDD supports China Mobile Unicom Telecom 4G network
Support RS232/RS485/TTL to4G&BLE Data Transmission, UART baud rate Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode, MQTT, WebSocket
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.
Support NTP
Support Modbus TCP to Modbus RTU
Support IOTBridge for Remote Control and Config.
Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge.
Support Serial Port, Network OTA Upgrade Firmware.
Multiple Type of Different Power Input：
-H：100～240VAC@50～60H
-M：9～48VDC@1A
Size: 102.03 x 64.95 x 27.50 mm (L x W x H) ，C45 rail installation
